Installing a structural health monitoring system can be simpler
A universal IoT data acquisition and transmission unit that connects industrial and structural sensors without a wired power or communication network.
Intelligent energy management, modular interfaces
SENSOPOD brings structural monitoring to a new level with intelligent energy management, modular interfaces and flexible communication.
It works as a simple single-sensor logger or as part of a complex modular system, and runs for up to five years on its replaceable battery, depending on the application.
Where SENSOPOD fits best
Mixed sensor use
Analogue 4-20 mA, Modbus, RS485 and GNSS interfaces connect a wide range of measuring devices.
Large sites
Wireless operation where cabling or relocating sensors would be difficult, like industrial parks and construction sites.
Structures hard to cable
A stand-alone alternative for bridges, tunnels and other structures.
Reconfigurable use
Interchangeable interfaces and flexible firmware let one unit serve many projects.

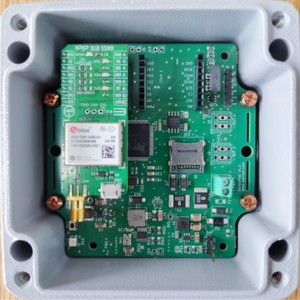

Robust hardware, secure data
The IP67-rated cast aluminium housing guarantees reliable operation outdoors, in industrial facilities or in the field.
Internal flash memory and an optional microSD card store measurements locally, so no data is lost during a power failure or while offline. Firmware can be updated over the air when the connection allows.
See SENSOPOD in action
Key benefits of SENSOPOD
Completely autonomous
Long-life replaceable lithium battery, optional solar or mains power, up to 5 years of operation.
Wide sensor compatibility
Analogue (4-20 mA, 0-10 V), digital, RS232, RS485 (Modbus), CAN and GNSS sensors.
Flexible communication
NB-IoT, Cat-M, 4G-LTE, LoRa(WAN), Wi-Fi, and satellite on demand.
Energy-efficient
Deep sleep between measurements significantly extends battery life.
Compact and robust
IP67-rated aluminium housing for extreme conditions.
Reconfigurable and reusable
Reuse the same device with different sensors across projects.
Local data storage
Internal flash and optional microSD prevent data loss, even offline.
Remote updates
Over-the-air firmware updates reduce on-site maintenance.
Online configuration
Set sampling intervals, timings and sensor parameters in the SURVIOT interface.
API and MQTT integration
MQTT(S) and HTTP(S) connect it to other systems through the SURVIOT platform.
Technical data
Sensor interfaces
Analog 4–20 mA and 0–10 V, digital I/O, RS232, RS485 (Modbus), CAN, GNSS (optional)
Communication
NB-IoT, Cat-M, 4G-LTE, LoRa(WAN), Wi-Fi, satellite in special cases
Protocols
MQTT(S), HTTP(S) (TCP, UDP), SURVIOT Cloud or private server
Sampling
Online configurable frequency, measurement windows, number of cycles
Data storage
Internal flash memory, optional microSD expansion
Firmware update
Over-the-air if bandwidth allows, manual update also available
Enclosure
Cast aluminium (optional DIN-rail version), 100 × 100 × 80 mm, IP67
Mounting
Wall, pole or DIN rail
Certification
CE
Battery life
Up to 5 years, depending on sensor, communication and measurement cycle
Power supply
Replaceable lithium battery, external 12 V battery, 12–24 V DC, solar accessory
Want SENSOPOD for your project?
Tell us about your project idea or ask for a precise quotation. We will help you choose the optimal solution right from the start.
